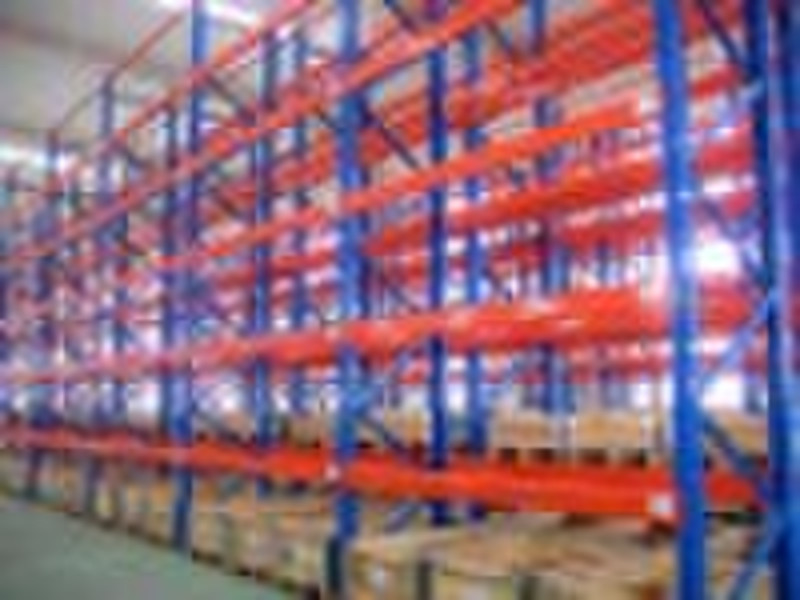

Selective pallet racking

Selective pallet racking Features: (1) Excellent in quality and beautiful in appearance with high quality steel. (2) Surface: power coating. Smooth surface, do not rust, be anti-corrosive, non-toxic. (3) Available with large loading capability: 1000KG-5000KG/Layer, large load bearing: 8000KG-12000KG/Bay. (4) Beam levers are adjustable in 75mm pitch interval. (5) Different sizes, various specifications and colors are available according to customers’ different needs. (6) Popular in South America, Europe, Australia and Asia etc. Some speccification: The specification of column section Item Width (mm) Depth(mm) Thickness(mm) 1 80 70 1.5/2.0/2.5 2 90 70 1.5/2.0/2.5 3 120 80 1.5/2.0/2.5 The specification of step beam section Item Width (mm) Depth(mm) Thickness(mm) 1 50 30 1.5/2.0/2.5 2 60 40 1.5/2.0/2.5 3 80 50 1.5/2.0/2.5 4 120 40 1.5/2.0/2.5 The specification of clasp section Item Width (mm) Depth(mm) Thickness(mm) 1 80 40 1.5/2.0/2.5 2 90 45 1.5/2.0/2.5 3 100 50 1.5/2.0/2.5 4 120 40/50 1.5/2.0/2.5 5 140 40/50 1.5/2.0/2.5 Please inform us the listed information in your inquiry for a quick quotation: (1) AUTOCAD drawings(If not available, we can provide). (2) Size of your warehouse. (3) Width, depth of shelving. (4) Height of shelving system. (5) How many bays you want. (6) How many layers you want. (7) Loading capacity of each layers. (8) RAL color you want.
